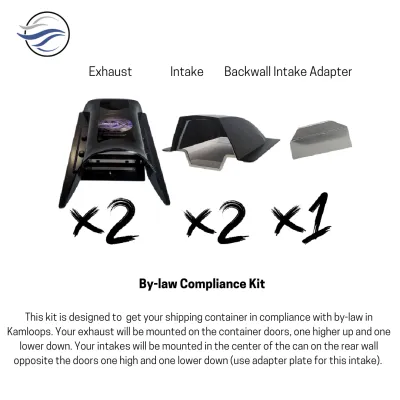

This Kit is designed for Shipping Containers that require compliance with the City of Kamloops Container By-Law.

Choose your kit requiring that the exhaust vent be mounted on the side of the container that receives the most wind. The intake vent will be mounted on the opposite side of the container.

Have questions, please see our Vent Placement Guide. or  Contact Us

The DRY-CON X® Exhaust Vent

For Shipping Containers & Storage, this vent “DRIVES” the Ventilation System. Our patented design creates a “Venturi Effect” when air passes over or through the vent . The vacuum this creates pulls stale, moist air out of the enclosure and then fresh, ambient air is pulled through the Intake Vent completing the air exchanges necessary to prevent moisture buildup.

OUR EXHAUST VENT:

• Operates as an exhaust port in any wind condition regardless if the enclosure is stationary or mobile

• Requires no moving parts and is maintenance free

• Is screened for debris and pest control

• Is made from highly durable UV resistant Polycarbonate

• Installs directly onto container doors without an Adapter Plate

• Must have an Intake Vent(s) to allow it to perform to specifications; 1 Intake Vent /1 DRY-CON X ® Exhaust Vent for a 20' Container, 2 Intakes /2 DRY-CON X ® Exhaust Vents for a 40' Container

Back Wall Intake Vent

This is a passive vent designed to be easily installed on a back wall of a container / conex for condensation and moisture control. The size (vent area) is designed to feed one DRY-CON X ® Exhaust Vent.

OUR INTAKE VENT:

• Is part of the DRY- CON X® AIR EXCHANGE SYSTEM that allows fresh air to enter the container and be drawn through by the Exhaust vent (“Driver”)

• Requires no moving parts and is maintenance free

• Is screened for debris and pest control

• Is made of highly durable UV resistant Polycarbonate

Installation

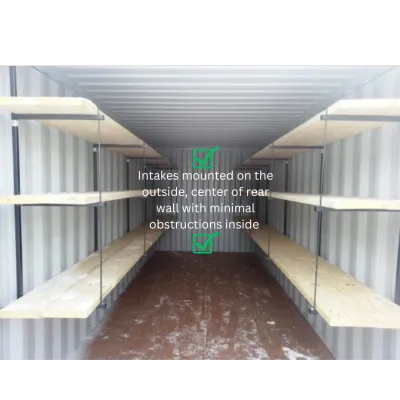

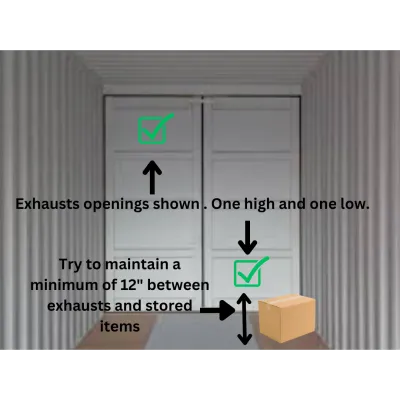

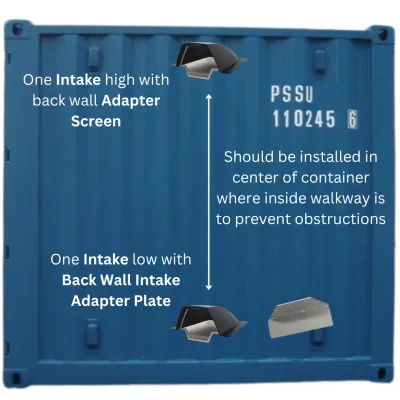

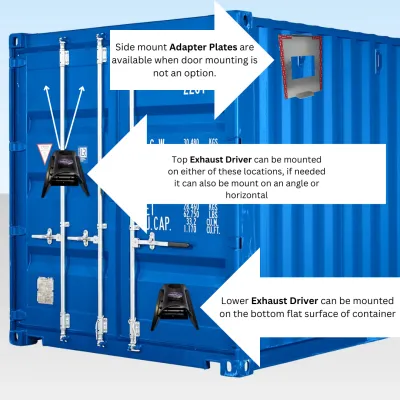

Your exhaust will be mounted on the container doors, one higher and one lower. your intakes will be mounted in the center of the can on the rear wall opposite the doors, one higher and one lower (use vent adapter on lower intake)
